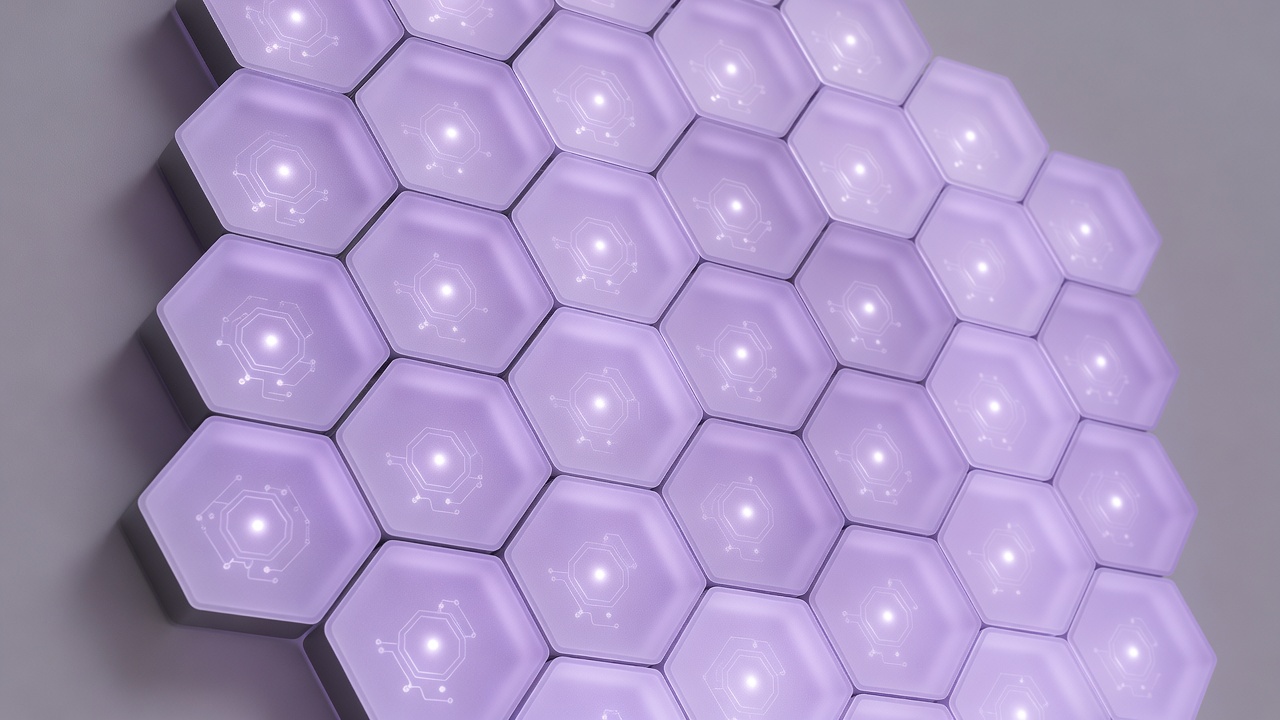

HexaCore: Cellular Geometry For Spatial Ambiance

Architectural Philosophy: Biomimetic Hexagons

The hexagonal format represents nature’s most efficient structural tessellation. In the LumaTile HexaCore, this geometry allows architects and interior designers to build sprawling light fields across uneven walls, curved pillars, or acoustic wall treatments without leaving awkward visual boundaries.

Each edge contains two gold-plated spring-loaded pogo conductors flanked by rare-earth Neodymium (NdFeB) N52 magnets. Because every edge uses a mirrored polarity arrangement, tiles self-center into true 60-degree alignment automatically as they are brought within 18 millimeters of one another.

Comprehensive Hardware Specifications

Specification	HexaCore Spec Rating	Industry Standard Reference
Tile Dimensions	162mm (width) × 140mm (height) × 3.2mm (depth)	Traditional sconces: 120mm+ depth
Color Temperature Range	1,800 Kelvin to 7,000 Kelvin continuous spectrum	Fixed 2700K or 4000K single-diode
Luminous Flux	180 Lumens per individual tile at 100% white point	Typical smart panel: 80–100 Lumens
Input Voltage Bus	24V DC low-voltage safe-touch conductor	High-voltage 110V/240V requires junction boxes
Magnetic Tensile Strength	1.4 kg (13.7 N) per interlock seam	Adhesive tape prone to wall damage
Smart Home Ecosystems	Apple HomeKit, Matter over Thread, Google Home, Home Assistant	Proprietary closed-protocol remotes

Circadian Rhythm Synchronization

HexaCore modules are equipped with multi-channel warm amber and cyan emitter clusters calibrated to human circadian biology. When connected through the LumaTile Controller Hub, the system references local solar coordinates to transition from energetic 6,500K daylight spectra during productive hours to a tranquil 2,000K melatonin-preserving amber in the evening.

For enterprise spaces and sound studios, HexaCore tiles maintain a flicker index under 0.01 at all dimming tiers, guaranteeing clean video capture without rolling shutter bands or high-frequency hum.
